66013-71-0710

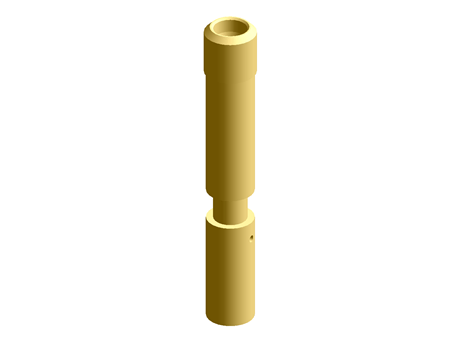

66013 Receptacle with a wire crimp termination
Part Number
66013-71-0710
Mating Lead Diameter
1,50-2,00mm(.059"-.078")
PP Plating Code
Clip Flash Gold / Barrel Flash Gold
Description
Receptacle with a wire crimp termination, Accepts leads from 1,50-2,00mm(.059"-.078"), Rated Current up to 11.0 A, Clip Flash Gold / Barrel Flash Gold
Technical Documents
Select your product
| Selector | Part Number | Description | Rated Current (A) | Mating Lead Diameter | PP Plating Code | Packaging |
|---|---|---|---|---|---|---|
| 1 | 66013-71-0710 | Receptacle with a wire crimp termination, Accepts leads from 1,50-2,00mm(.059"-.078"), Rated Current up to 11.0 A, Clip Flash Gold / Barrel Flash Gold | 11.0 A | 1,50-2,00mm(.059"-.078") | Clip Flash Gold / Barrel Flash Gold | Bulk |
