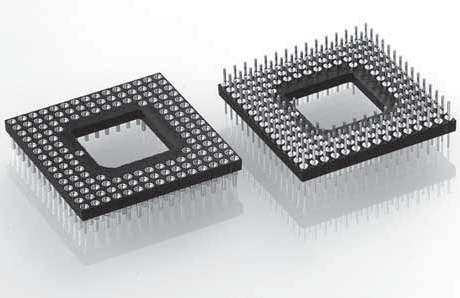

PGA carrier sockets with disposable plastic body. Low profile ultra thin contacts with solder termination Ø 0.95 mm that requires Ø 1 mm holes in PCB.

Part number

614-83-012-05-001112

Omniclass number

23.35.27.13

Description

PGA carrier sockets with disposable plastic body. Low profile ultra thin contacts with solder termination Ø 0.95 mm that requires Ø 1 mm holes in PCB., 5x5 pins, 12 contacts, 0.25 µm gold / 0.25 µm gold

Download CAD Models

Buy Now

Technical Documents

Top View

Left View

Pin configuration
