Dual-In-Line Pin Headers - Open frame / Solder tail

Part number

151-10-304-00-003101

Description

Dual-In-Line Pin Headers, Open frame / Solder tail, 4 poles, l1 = 6.2 mm, Tin / 0,75 µm Gold

Front View

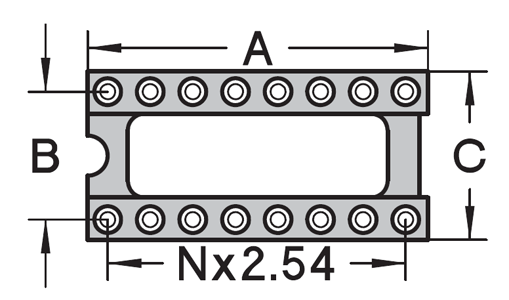

Top View

Selector	Number of Poles	A (mm)	B (mm)	C (mm)	Order codes
35	10	12.6	5.08	7.6	151-PP-210-00-XXX101
1	4	5	7.62	10.1	151-PP-304-00-XXX101
5	6	7.6	7.62	10.1	151-PP-306-00-XXX101
6	8	10.1	7.62	10.1	151-PP-308-00-XXX101
7	10	12.6	7.62	10.1	151-PP-310-00-XXX101
8	12	15.2	7.62	10.1	151-PP-312-00-XXX101
9	14	17.7	7.62	10.1	151-PP-314-00-XXX101
10	16	20.3	7.62	10.1	151-PP-316-00-XXX101
11	18	22.8	7.62	10.1	151-PP-318-00-XXX101
12	20	25.3	7.62	10.1	151-PP-320-00-XXX101
13	22	27.8	7.62	10.1	151-PP-322-00-XXX101
14	24	30.4	7.62	10.1	151-PP-324-00-XXX101
15	28	35.5	7.62	10.1	151-PP-328-00-XXX101
17	20	25.4	10.16	12.6	151-PP-420-00-XXX101
18	22	27.8	10.16	12.6	151-PP-422-00-XXX101
19	24	30.4	10.16	12.6	151-PP-424-00-XXX101
20	28	35.5	10.16	12.6	151-PP-428-00-XXX101
21	32	40.6	10.16	12.6	151-PP-432-00-XXX101
22	10	12.7	15.24	17.7	151-PP-610-00-XXX101
23	24	30.5	15.24	17.7	151-PP-624-00-XXX101
24	28	35.5	15.24	17.7	151-PP-628-00-XXX101
25	32	40.6	15.24	17.7	151-PP-632-00-XXX101
26	36	45.7	15.24	17.7	151-PP-636-00-XXX101
27	40	50.8	15.24	17.7	151-PP-640-00-XXX101
28	42	53.3	15.24	17.7	151-PP-642-00-XXX101
29	48	60.9	15.24	17.7	151-PP-648-00-XXX101
30	50	63.5	15.24	17.7	151-PP-650-00-XXX101
31	52	66	15.24	17.7	151-PP-652-00-XXX101
