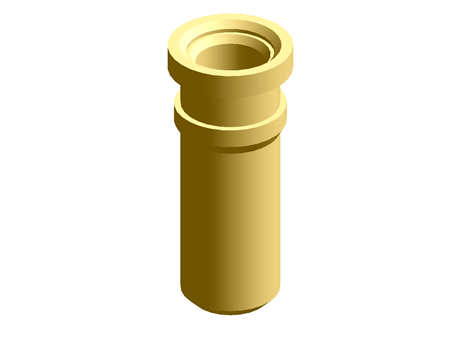

15049 Receptacle with no tail
Part Number
15049-87-3410
Rated Current (A)
8A
Manting
.032'-.047' (0.81-1.2mm)
PP Plating Code
5µm Sn over Nickel/Gold 1.27µm mini over Nickel
Description
Receptacle with no tail, Accepts leads from .032'-.047' (0.81-1.2mm) Rated Current up to 8A, Sleeve Plating 5µm Sn over Nickel, Clip Plating Gold 1.27µm mini over Nickel
Technical Documents
Select your product
| Selector | Part Number | Description | Rated Current (A) | Manting | PP Plating Code |
|---|---|---|---|---|---|
| 1 | 15049-87-3410 | Receptacle with no tail, Accepts leads from .032'-.047' (0.81-1.2mm) Rated Current up to 8A, Sleeve Plating 5µm Sn over Nickel, Clip Plating Gold 1.27µm mini over Nickel | 8A | .032'-.047' (0.81-1.2mm) | 5µm Sn over Nickel/Gold 1.27µm mini over Nickel |
