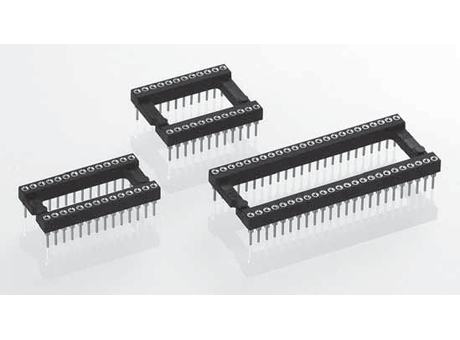

Shrinkdip pin header - Solder tail

High density DIL sockets for devices featuring 0.07” (1.778 mm) lead spacing. Surface mount Shrinkdip socket with gull terminations

product image
product image
product image
product image
product image
product image
product image
Part number
150-10-316-00-012101
Description
Shrinkdip pin header, solder tail, 16 poles, 0.25 μm Gold / 0.25 μm Gold
Download CAD Models
Buy Now

Technical Documents

Front View
Top View

Select your product

Selector Number of Poles A (mm) B (mm) C (mm) Order codes
10 16 14.6 7.62 10.1 150-PP-316-00-105101
18 28 25.2 10.16 12.7 150-PP-428-00-105101
19 30 27 10.16 12.7 150-PP-430-00-105101
20 32 28.8 10.16 12.7 150-PP-432-00-105101
21 48 43.1 10.16 12.7 150-PP-448-00-105101
22 20 18.1 15.24 17.64 150-PP-620-00-105101
23 24 21.7 15.24 17.64 150-PP-624-00-105101
24 28 25.2 15.24 17.64 150-PP-628-00-105101
25 40 35.9 15.24 17.64 150-PP-640-00-105101
26 42 37.7 15.24 17.64 150-PP-642-00-105101
27 48 43.1 15.24 17.64 150-PP-648-00-105101
28 52 46.7 15.24 17.64 150-PP-652-00-105101
29 56 50.2 15.24 17.64 150-PP-656-00-105101
30 64 57.3 15.24 17.64 150-PP-664-00-105101
31 68 60.9 15.24 17.64 150-PP-668-00-105101
36 67 57.4 19.05 21.59 150-PP-764-00-105101
