Product Finder

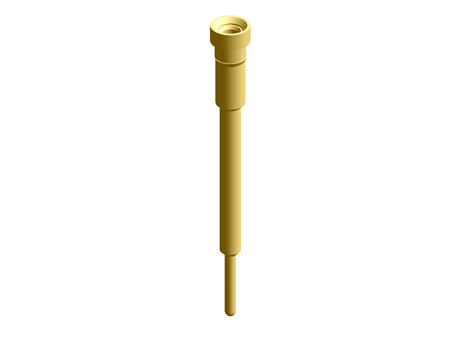

01608 Receptacle with a standard tail
Part Number
01608-13-3010
Rated Current (A)
3.0 A
Mating Lead Diameter
0,36-0,56mm(.014"-.022")
PP Plating Code
Clip 0,75 µm Gold / Barrel 0,25µm Gold
Description
Receptacle with a standard tail, Accepts leads from 0,36-0,56mm(.014"-.022"), Rated Current up to 3.0 A, Clip 0,75 µm Gold / Barrel 0,25µm Gold
Technical Documents
Sélection de produit
| Selector | Part Number | Description | Rated Current (A) | Mating Lead Diameter | PP Plating Code | Packaging |
|---|---|---|---|---|---|---|
| 1 | 01608-13-3010 | Receptacle with a standard tail, Accepts leads from 0,36-0,56mm(.014"-.022"), Rated Current up to 3.0 A, Clip 0,75 µm Gold / Barrel 0,25µm Gold | 3.0 A | 0,36-0,56mm(.014"-.022") | Clip 0,75 µm Gold / Barrel 0,25µm Gold | Bulk |
| 2 | 01608-83-3010 | Receptacle with a standard tail, Accepts leads from 0,36-0,56mm(.014"-.022"), Rated Current up to 3.0 A, Clip 0,75 µm Gold / Barrel 5 µm Sn | 3.0 A | 0,36-0,56mm(.014"-.022") | Clip 0,75 µm Gold / Barrel 5 µm Sn | Bulk |
| 3 | 01608-87-3010 | Receptacle with a standard tail, Accepts leads from 0,36-0,56mm(.014"-.022"), Rated Current up to 3.0 A, Clip Flash Gold / Barrel 5 µm Sn | 3.0 A | 0,36-0,56mm(.014"-.022") | Clip Flash Gold / Barrel 5 µm Sn | Bulk |
