Spring Loaded Contacts offer key advantages for reliable connectivity. Their flexible design automatically corrects misalignment. They enable blind mating, simplifying assembly in tight or hard-to-reach spaces without precise alignment. Additionally, they withstand thousands of mating/unmating cycles, making them ideal for applications requiring frequent connections, such as testing equipment or modular systems.
Power Pogo Pins for Compact, Power-Dense Electronics
Modern electronics require more current in increasingly compact spaces. Designers working on charging docks, robotics, satellite subsystems, portable medical instruments, EV control modules or high-density PCB assemblies often need to move significant current across minimal board-to-board distance.
Traditional pogo pins struggle with:
- Excessive heating.
- Unstable contact under vibration.
- Insufficient current ratings.
To solve these constraints, PRECI-DIP has engineered a family of high-current spring-loaded contacts, often referred to as power pogo pins, combining compact dimensions with the electrical robustness.
The key to this performance is Clip Technology, PRECI-DIP’s patented multi-point contact system that enables low-resistance, vibration-proof, high-current operation.

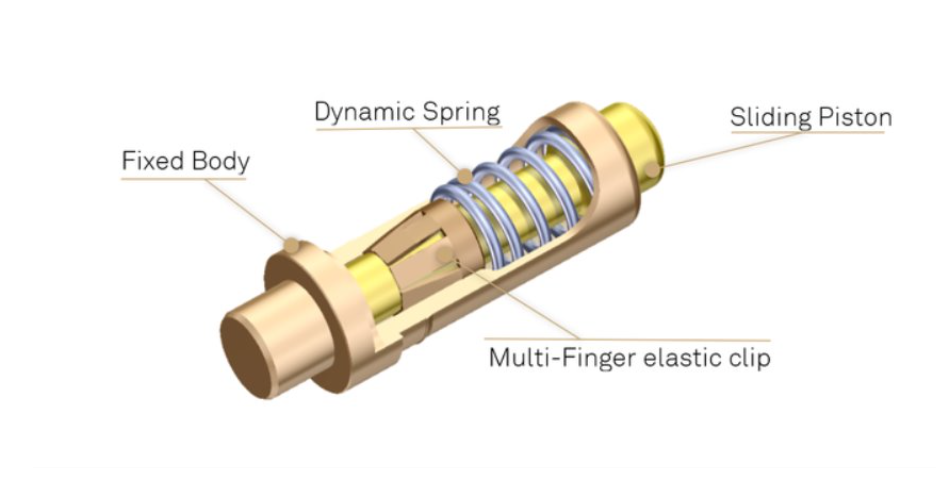

Internal architecture of a PRECI-DIP power pogo pin with multi-finger Clip Technology.
Clip Technology for High-Current Spring Pins
Traditional hollow pogo pins use a single sliding contact point between piston and barrel. Under vibration or high current, this point becomes a bottleneck: resistance increases, heat builds up, and contact can be momentarily lost.
PRECI-DIP’s Clip Technology replaces this fragile interface with an elastic multi-finger clip that surrounds the piston. Each finger maintains independent contact pressure, providing:
- Several current paths.
- Large, stable conductive surface area.
- Low resistance across the full stroke.
- No loss of conductivity under shock or vibration.
This architecture enables PRECI-DIP power pogo pins to maintain electrical contact at vibration frequencies up to 2,000 Hz and to safely deliver continuous current levels that can reach 40 A, depending on the mechanical design and thermal environment.
In practice, Clip Technology behaves like a micro-suspension system that keeps power flowing regardless of movement, tolerances or thermal expansion.
PRECI-DIP power pogo pins engineered for compact, high-current and vibration-resistant applications.
The Power-Clip Series: Current Ratings and Typical Use Cases
PRECI-DIP manufactures a full catalogue of power pogo pins with different mounting styles, working strokes and current capacities. Three representative examples illustrate the range.
0907-0-CLIP – 5 A Range
Compact and versatile, suitable for mid-power applications such as:
- Compact docking mechanisms.
- Battery-powered handheld devices.
- Small charging modules.
Its multi-finger clip ensures stable resistance despite its small footprint.
90738-AS – 12 A Range
Designed for board-to-board links requiring a defined mechanical gap (approx. 12.85 mm).
Common in:
- Modular automotive or industrial electronics.
- Power distribution PCB stacks.
- Robotics control boards.
90784-AS – 20 A Range
A robust power connector supporting 20 A continuous current across a typical board distance of 16.27 mm, ideal for:
- Charging interfaces.
- High-current PCB power entry points.
- Dense power modules.
Clip Technology also enables custom designs capable of reaching up to 40 A. PRECI-DIP’s engineering team assists customers in selecting or adapting the correct power pogo pin for specific current levels, thermal conditions and mechanical layouts.
Mechanical Stability in Power Applications
Power connectors are often used in environments where movement is unavoidable. Devices may be docked and undocked thousands of times, subjected to continuous vibration in vehicles or machinery, or exposed to temperature fluctuations created by nearby power electronics.
The elastic behavior of the Clip system ensures that the contact pressure remains constant throughout the stroke, even as the device moves. Rather than depending on a single sliding point, the multi-finger design compensates for tolerances between boards, absorbs vibrations and maintains conductivity under shock.
This mechanical integrity is why PRECI-DIP power pogo pins are used in EV systems, robotics, telecom infrastructure, satellites, medical equipment and rugged industrial electronics.
Key Considerations When Integrating Power Pogo Pins
When selecting a high-current spring-loaded connector, engineers must consider not only the electrical rating but the overall environment in which the pin will operate. Required board-to-board distance, available height, working stroke, ambient temperature and expected mechanical stress all play a role.
Gold-plated surfaces are essential to maintain low resistance and prevent corrosion over long lifetimes, while the internal spring must provide repeatable force throughout the operating stroke. In many designs, working stroke becomes a critical parameter: it must accommodate mechanical tolerances while keeping the piston within the optimal contact region of the clip.
PRECI-Dip’s approach focuses on deeply understanding engineers’ needs to deliver customized solutions tailored to their unique requirements.
This enables engineers to seamlessly integrate power connectors into products where space is extremely limited, without compromising electrical or mechanical reliability. By combining precision engineering with innovative design, PRECI-Dip ensures high-performance solutions for even the most demanding applications.
Why Engineers Choose PRECI-DIP for Power Spring-Loaded Connectors
PRECI-DIP is widely recognized as a Swiss connector manufacturer specializing in ultra-precise metallic components that enable reliable electrical contact in demanding environments. The company manufactures:
- Spring-loaded connectors and pogo pins.
- PCB connectors for fixed board-to-board links.
- Qualified MIL socket contacts (AS39029).
- Waterproof and sealed spring-loaded connectors.
- Press-fit connectors.
- Custom-made pin and socket receptacles.
Across all these product families, vertical integration, machining, plating, spring coiling, moulding and assembly, ensures that power pogo pins maintain the tight tolerances, electrical stability and mechanical repeatability required in critical electronics.
For high-current pogo pins in particular, engineers turn to PRECI-DIP because of the proven performance of Clip Technology, the availability of power ratings from 5 A to 20 A, and the ability to design solutions capable of reaching 40 A when required. The combination of size, power capability and reliability is difficult to match with any other connector architecture.
FAQs
What is a power pogo pin?
A power pogo pin is a spring-loaded connector designed to carry higher current than standard signal pogo pins. Its internal spring and movable piston maintain reliable electrical contact even when device components move or vibrate.
How much current can PRECI-DIP power pogo pins handle?
Catalogue examples include designs for 5 A, 12 A and 20 A, while Clip-based configurations can reach up to 100A, depending on geometry and thermal conditions.
Why is Clip Technology important for power applications?
Clip Technology uses a multi-finger elastic contact instead of a single rigid point. This provides more stable resistance, better current distribution and reliable operation under vibration, crucial for high-current environments.
Are power pogo pins suitable for vibration-prone environments?
Yes. PRECI-DIP’s multi-finger clip maintains conductivity under vibration levels up to 2,000 Hz or more, making the connectors appropriate for automotive, robotics and industrial systems.
Where are high-current spring-loaded contacts used?
Typical applications include charging systems, docking stations, EV modules, satellites, robotics, military equipment and portable medical devices.
Can PRECI-DIP create custom high-current spring-loaded connectors?
Yes. PRECI-DIP frequently develops bespoke power pogo pins with custom stroke, current rating, footprint, termination style and materials to meet specific engineering requirements.
